Product Introduction

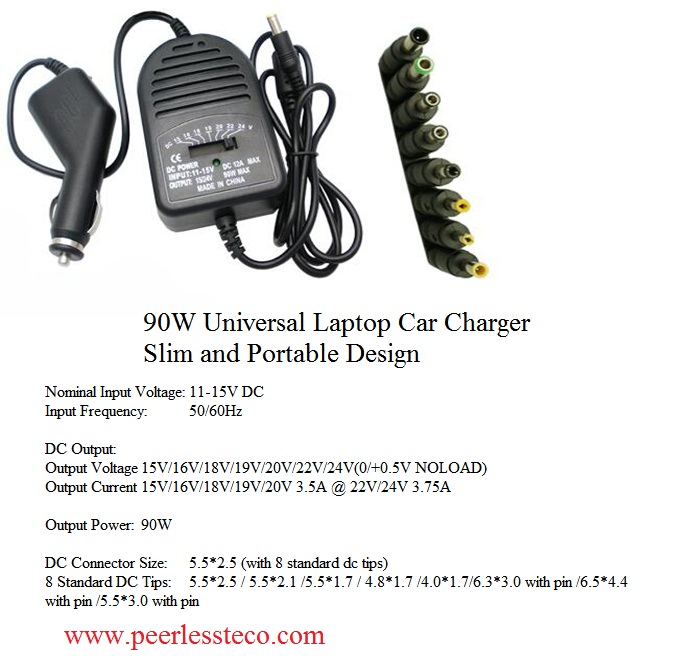

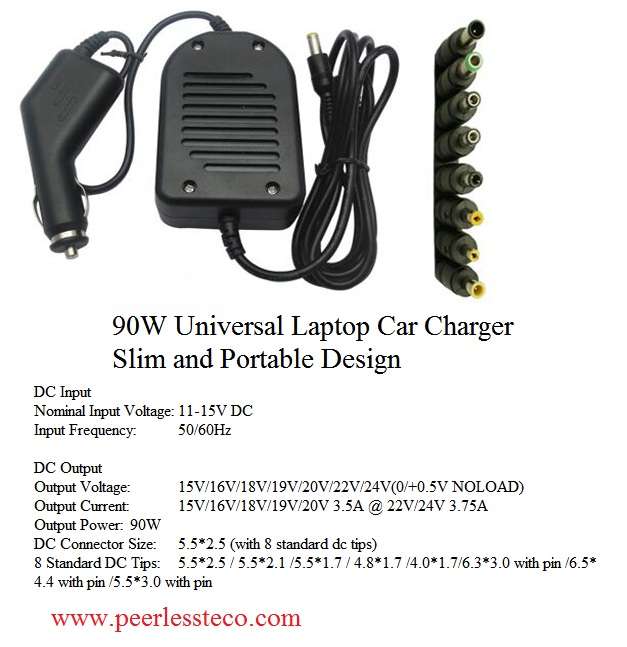

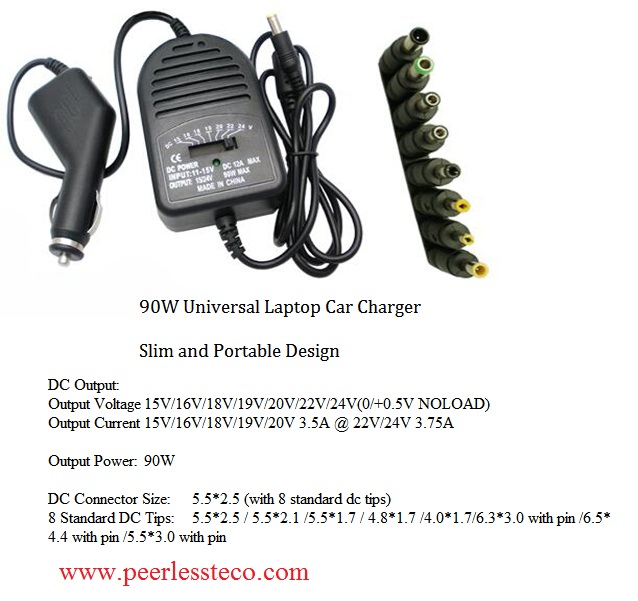

90W Universal Laptop Car Charger



Advantages:

1. 100% burn-in test for 4 hours before delivery like international standard.

2. 0.3-0.5% defective rate.

3. 100% replacement of the defective goods.

4. Flexible and fast delivery time.



Specifications:

DC Input

Nominal Input Voltage 11-15V DC

Input Frequency 50/60Hz

DC Output

Output Voltage 15V/16V/18V/19V/20V/22V/24V(0/+0.5V NOLOAD)

Output Current 15V/16V/18V/19V/20V 3.5A @ 22V/24V 3.75A

Output Power 90W

DC Connector Size 5.5*2.5 (with 8 standard dc tips)

8 Standard DC Tips 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 /4.0*1.7/6.3*3.0 with pin /6.5*4.4 with pin /5.5*3.0 with pin

Line Regulation 1%

Load Regulation 1%

Ripple Noise 180 Mvp-p

Efficiency 85%

Output Cable Standard 0.75mm 2 Pure Copper

Output Cable Length 1.5m normally or customized requirement

Environment:

Operating Temperature 0°C~40°C

Operating Humidity 5%~95%RH

Storage Temperature -20°C~85°C

Storage Humidity 5%~95%RH

Protection Functions:

Over Load Protection Short Circuit Protection

Over Current Protection Over Temperature Protection

Certificates:

CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE



Dimensions:

Adapter Weight with 8 dc tips 295G

Color Box Size 26*16*53CM

Color Box Weight 65G

PCS/CTN 20PCS or 40PCS

Outer Carton Size 42*27*32.5CM or 53*32.5*42CM

Outer Carton Weight 600G or 800G

GW/CTN 7800G or 15200G

Package

Inner Box Normally neutral color box or customized requirement

Outer Carton Normally neutral standard carton or customized requirement

Warranty

Guarantee 30 days

Warranty 2 years



       Any order requirement, send emails directly including all battery and AC Adapter models with specifications to get a best quotation. Thank you!


----------------------------
